PLENSET
Feature
Perfect Liquid type
Features

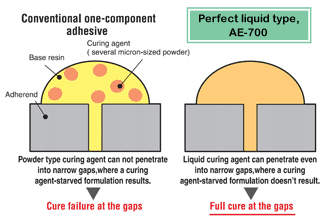

- AE-700 as perfect liquid “PLENSET” is a perfect-liquid one-component adhesive which contains no powder solid particle ingredient.
- It can penetrate even into narrow gaps and cure completely because the resin and curing agent are dissolved together into a liquid.
Uses
- Bonding by penetration into in narrow gaps
- Forming bonds with screws
- Impregnation and bonding of coils
- Bonding in places where users want to minimize bond thickness
| ITEM | AE-700 | Conditions | ||
|---|---|---|---|---|
| Properties before curing |
Appearance | Brown clear liquid | Visual observation | |
| Viscosity | 11Pa･s | E-type viscometer, 25degC, 5rpm |
||
| Thixotropic index | 1.1 | E-type viscometer, 25degC, 2rpm/20rpm |
||
| Specific gravity | 1.2 | 25degC | ||
| Gel time | 18min. at 120degC | Hot plate | ||
| Recommended cure schedule | 30min at 120degC | Convection oven heating | ||
| Properties after curing |
Lap shear strengt | 20N/mm2 | JIS K-6850 (steel plate) | |
| Glass transition temperature |
53degC | TMA | ||
| Coefficient of Thermal Expansion |
α1 | 75ppm | ||
| α2 | 185ppm | |||
| Flexural modulus | 1.3GPa | DMS,25degC | ||
| Volume resistivity | 8×1015ohm cm | JIS K-6911 | ||
| Dielectric constant | 3.2 | JIS K-6911 | ||
| Dielectric loss tangent | 0.037 | |||
Technical data presented in this document are typical experimental values and do not signify any of the products’ specifications. The data may be revised without prior notice.
