PLENSET
Feature
Electrically conductive type
Features
- The adhesives of this type can cure at 100degC or less, unequaled by any other one-component epoxy resin electrically conductive paste. They can be applied to heat-sensitive components. This curing and the other bonding steps can be combined into one process.
- They cure within one minute in a medium temperature range such as 150degC, contributing to improve prodution efficiency to reduce mutiple processes by minimizing curing time.
- CJ series as electrically conductive “PLENSET” has achieved curing at 80degC
Uses
Less Solvent compositon
PLENSET has less solvent composition.
Therefore, It does not generate out-gas during curing process, while conventinal type of conductive adhesive has comtamination issue caused by out gas.
Due to less solvent composition, PLENSET has widely used for Lens and camera modeles.

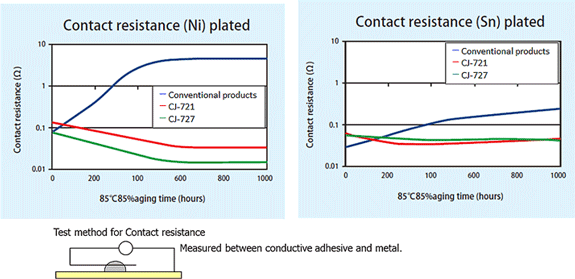

Galvanic corrosion resistance
Galvanic corrosion (Bimetallic corrosion) inhibiting electrically conductive adhesive about galvanic corrosion.
This corrosion is an electrochemical oxidazation reduction process, which occurs when two dissimilar metals are brought into electrical contact under high temperature and high humidity condition.
- Electric potential is high. (Ag) -> Cathode
- Electric potential is low. (Sn、Ni) -> Anode
Anodal metal is corroded.
-> Contact resistance increases between Ag and Sn or Ni.
If the galvanic corrosion can be minimized, Conductive adhesive can replaced by soldering process.
As solder reflow (at high temperature process) and/or flux cleaning are not needed, reducing the number of production steps can be realized and low heat-resistant materials can be combined.
| ITEM | CJ-721 | CJ-727 | Conditions | |
|---|---|---|---|---|
| Properties before curing |
Electrically conductive powder content |
75％ | 80％ | – |
| Appearance | Silver paste |
Silver paste |
Visual observation | |
| Viscosity | 27Pa･s | 70Pa･s | E-type viscometer, 25degC, 5rpm |
|
| Thixotropic index | 3.2 | 4.5 | E-type viscometer, 25degC, 0.5rpm/5rpm |
|
| Recommended cure schedule | 60min at 80degC |
60min at 80degC |
Convection oven | |
| Properties after curing |
Lap shear strength |
4.5N/mm2 | 4.5N/mm2 | Cu-clad glass- epoxy plate |
| Glass transition temperature |
88degC | 92degC | TMA | |
| Volume resistivity |
1.2×10-3 ohm.cm |
5.0×10-4 ohm.cm |
||

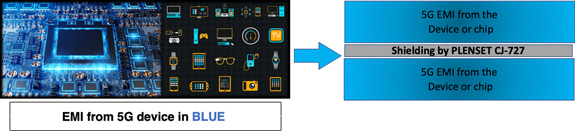

Sheiding EMI
With rich Ag filler enables to perform as EMI sheilding while PLENSET keeps good balance with fluidity.
PLENSET gives solution for Electromagnetic Intererence with ensuring to fill in the narrow gaps of application and device.
Unnessary of FLUX cleaning
Unlike conventinal type of Solder paste, PLENSET is required Flux cleaning prior to adhesion.
Reflow free (Unnessary of high temparature)
It is unnessary to process reflow because PLENSET is able to cure at 80℃
The reflow process can be time consuming to cure and it may cause the components to be damaged due to heat and out-gas.
Especially, PLENSET is one of solution for lens and sensor.
Low viscosity (PLENSET has achieved low viscosity with high concentration of electric conductive Ag filler)
PLENSET has sucessfully achieve high concentration Ag filler with excellent flowability.
As electronics industry requires downsizing and finer applications, PLENSET is possible to fill in to narrow space to penetrate smoothly.
We ensures that PLENSET keeps excellent performance both adhesiveness and flowability.
Technical data presented in this document are typical experimental values and do not signify any of the products’ specifications. The data may be revised without prior notice.
